bio-clean®

bio-cleanseal® Clean Room Penetrations

Penetrations for pipework through clean room walls, ceilings and floors: a stainless steel seal carrier with a silicone seal closes the gap between pipe and building element. Available as WS wall penetration, FS floor penetration and MPS multipanel penetration.

bio-cleanseal® clean room penetration systemPDF · 750 KB · DE/EN
0.3bar differential pressure, maximum
130°C operating temperature, short-term 150 °C
DIN04…300nominal sizes WS, plus ISO and OD
Ra < 0.8µm, carrier glass bead blasted

Overview

Through wall and floor. Sealed and cleanable.

bio-cleanseal® penetrations lead pipework from one controlled area into the next in a clean room compliant way. The smooth stainless steel seal carrier rests on the building element, the silicone seal closes against the pipe.

  • WS wall penetration, FS floor penetration, MPS multipanel penetration
  • Seal carrier made of 1.4404 (316L), glass bead blasted, Ra < 0.8 µm
  • Seal made of white silicone or black, electrically conductive silicone
  • Operating temperature −40 to +130 °C, short-term up to +150 °C
  • Differential pressure up to 0.3 bar
  • For pipes acc. DIN11866 series A, B and C, DIN11850 series 1 and SMS3008
  • All components marked with article number, material and heat number
  • Seal materials FDA conform, USP Class VI, TSE-free
  • Clean room silicone S68 in cartridges as accessory

Versions

Wall, floor, panel. One sealing principle.

WS Wall Penetration

bio-cleanseal®WS Wall Penetration

Flat seal carrier, 3 mm thick, with silicone seal at the pipe. For wall and ceiling, from DIN04 to DIN300, ISO06 to ISO150 and OD ⅛" to OD 8".

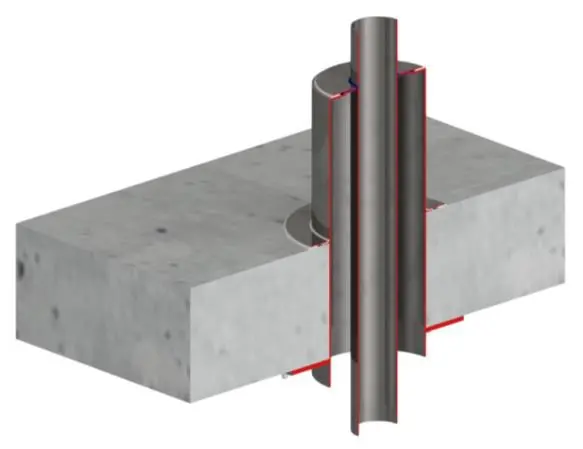

FS Floor Penetration

bio-cleanseal®FS Floor Penetration

Stainless steel sleeve through floor or ceiling, with seals at the pipe and at the floor surface. Height above floor and floor thickness are specified with the order. From DIN10 to DIN150, ISO08 to ISO125 and OD ½" to OD 4".

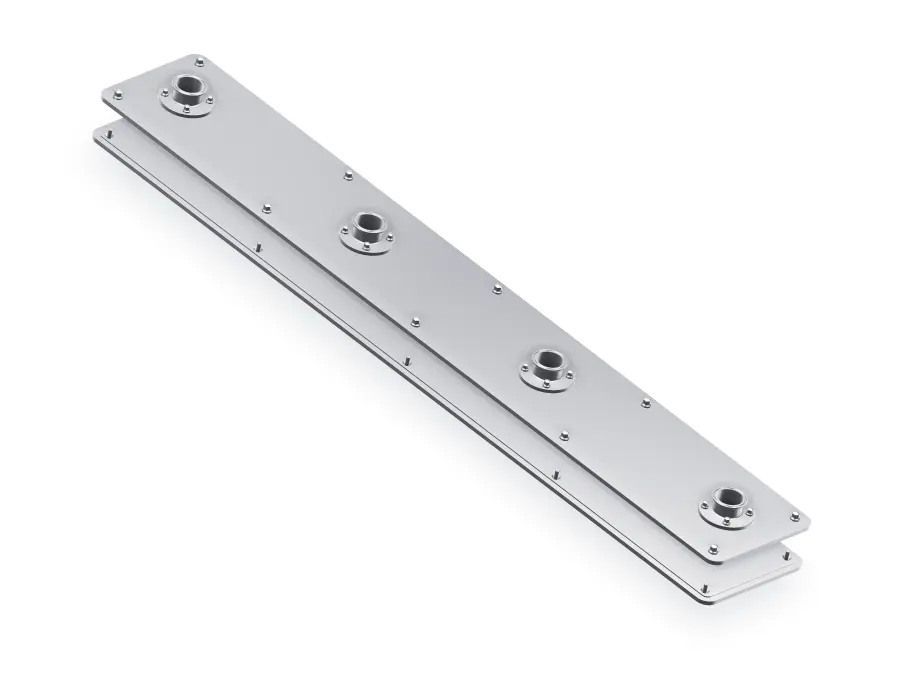

MPS Multipanel Penetration

bio-cleanseal®MPS Multipanel Penetration

One stainless steel panel takes several lines and connections. Hygienically designed and manufactured to requirements.

Sizes WS

One carrier diameter per nominal size.

Outside diameter of the seal carrier of the WS wall penetration. The thickness is 3 mm for all sizes. Dimensions of the FS floor penetration in the datasheet.

Nominal sizeCarrier diametermm
DIN04–DIN1570
DIN20–DIN2580
DIN32–DIN40100
DIN50120
DIN65140
DIN80150
DIN100160
DIN125180
DIN150220
DIN200280
DIN250350
DIN300390
ISO06–ISO1070
ISO15–ISO2080
ISO25–ISO40100
ISO50120
ISO65140
ISO80150
ISO100170
ISO125200
ISO150240
OD ⅛"–OD ¾"70
OD 1"80
OD 1½"100
OD 2"–OD 2½"120
OD 3"140
OD 4"180
OD 6"220
OD 8"280

Technical data

Materials, standards, temperatures.

Nominal sizes WS
DIN04–DIN300, ISO06–ISO150, OD ⅛"–OD 8"
Nominal sizes FS
DIN10–DIN150, ISO08–ISO125, OD ½"–OD 4"
Pipe standards
DIN11866 series A (DIN), series B (ISO), series C (OD); DIN11850 series 1; SMS3008; special dimensions on request
Seal carrier
1.4404 (316L)
Carrier surface
Glass bead blasted, Ra < 0.8 µm
Seal
White silicone; black silicone, electrically conductive
Operating temperature
−40 to +130 °C, short-term up to +150 °C, for both seal materials
Differential pressure
Maximum 0.3 bar
Traceability
All components marked with article number, material and heat number
Certificates
EN10204 3.1
Seal compliance
FDA conform, USP Class VI, TSE-free
Accessories
Clean room silicone S68, cartridge 310 ml, white, transparent or stainless steel coloured

Ordering key

Four details for the wall. Six for the floor.

Ordering examples: wall penetration WS.ISO10.27, floor penetration FS.ISO10.27.L2.L3.

1 Article · 2 Standard

  • WS wall penetration
  • FS floor penetration
  • MPS multipanel penetration
  • DIN acc. DIN11866 series A
  • ISO acc. DIN11866 series B
  • OD acc. DIN11866 series C
  • DINR1 acc. DIN11850 series 1
  • SMS acc. SMS3008
  • Spez special dimension

3 Size · 4 Seal

  • Nominal size of the selected standard, for example 10
  • 27 white silicone
  • 28 black silicone, electrically conductive

5 and 6 · FS only

  • L2 length above floor
  • L3 floor thickness

Contact

Enquiry

Tell us the type of penetration, pipe standard, nominal size and seal material, and for the floor penetration also the height above floor and the floor thickness. For multipanel penetrations, the number, position and type of the lines are sufficient — we will lay out the panel.
