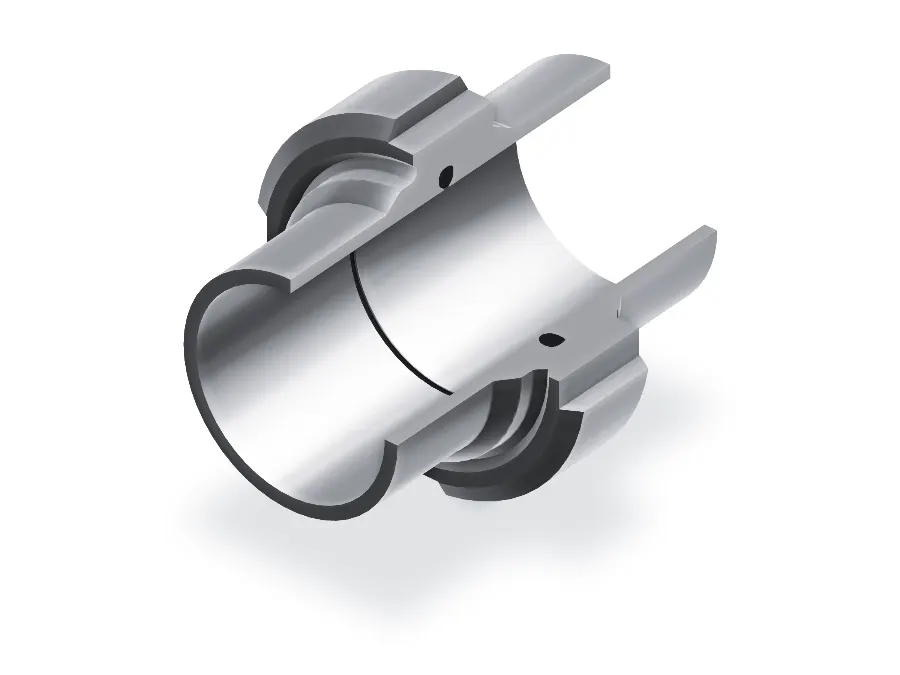

Thread and female ferrulesSterile Screw Union
Thread ferrule, female ferrule, O-ring and groove nut. Plus end caps and retaining ring.
View product
Process Components
Modular sterile component system for pharma/biotec & food industry applications.
- Fittings for Pipeline Construction (
bio-plus® , DIN32676, DIN11864, etc.) - Line Sight Glasses
- Check Valves – Now also Magnetically Closing
- Inline Strainers & Orifices
- Hose Assemblies & Fittings and Couplings
- Special Components
01
Sterile Connection

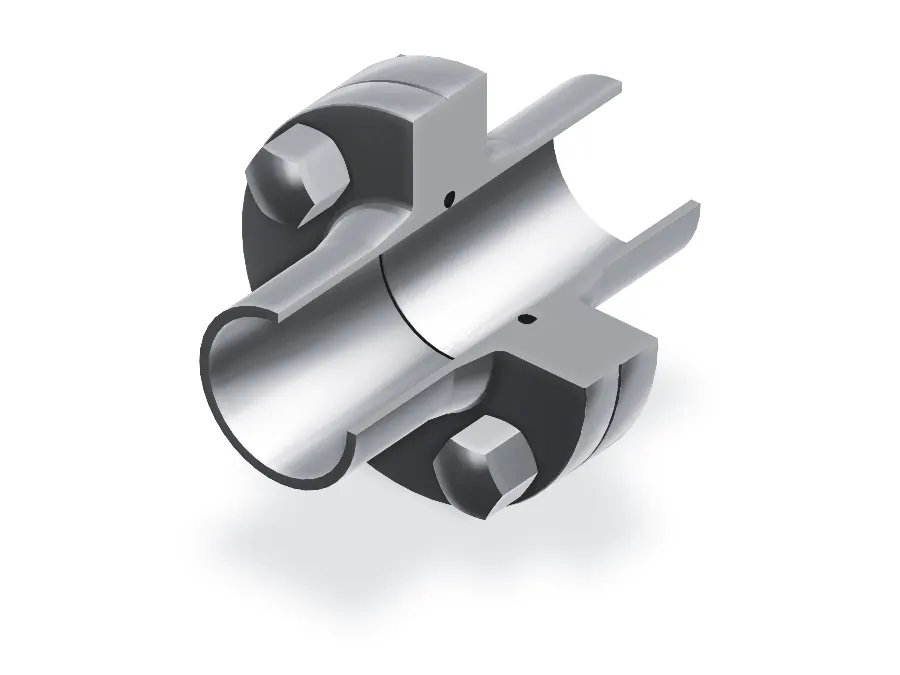

Groove and collar flangeSterile Flange Connection
Groove flange, collar flange and O-ring. Also as large flange connection and blind flange.

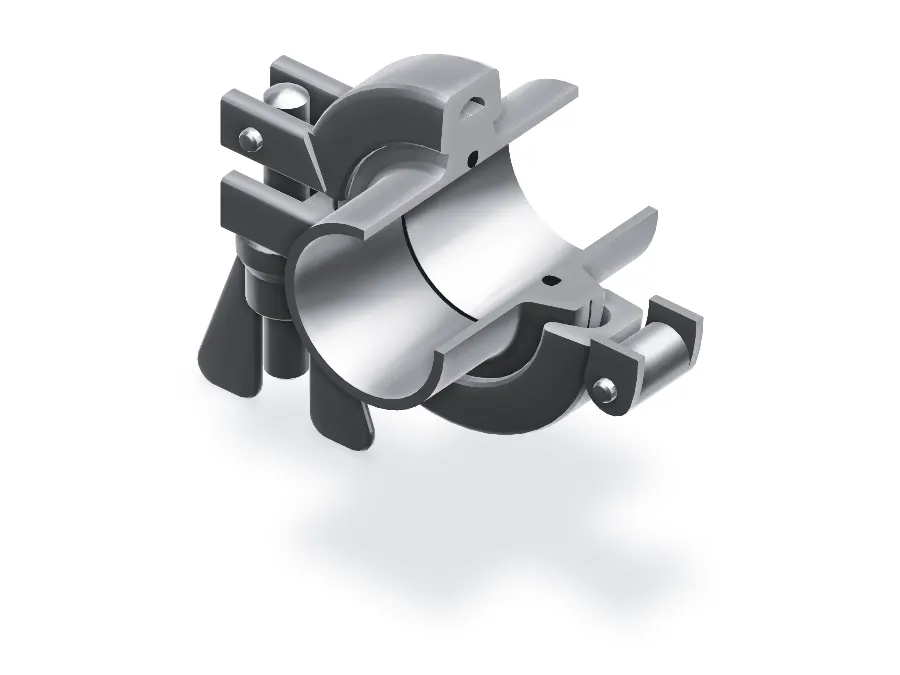

Clamp designSterile Clamp Union
Clamp ferrule, O-ring and clamp with wing nut, also as safety clamp.
02
Standard Connections
DIN11864 Aseptic Connection
DIN11864-1 aseptic screw unionDIN11864-2 aseptic flange connectionDIN11864-3 aseptic clamp union- Groove and collar blind flange
- Blind flange with sight glass
- Clamp and safety clamp
DIN32676 TC Connection
- TC ferrules in DIN, ISO and OD dimensions
- TC blind caps, also with handle
- TC front sight glass
- Clamps: standard, light, hexagon nut
- Safety and high pressure clamp
- TC gaskets
Pipe Fittings & Reducers
- Pipe bends 90°, 45° and 180° (ASME BPE)
- T-piece equal, equal short and reduced
- Cross piece and orbital end cap
- Reducer concentric (DIN11865)
- Reducer excentric (DIN11865)

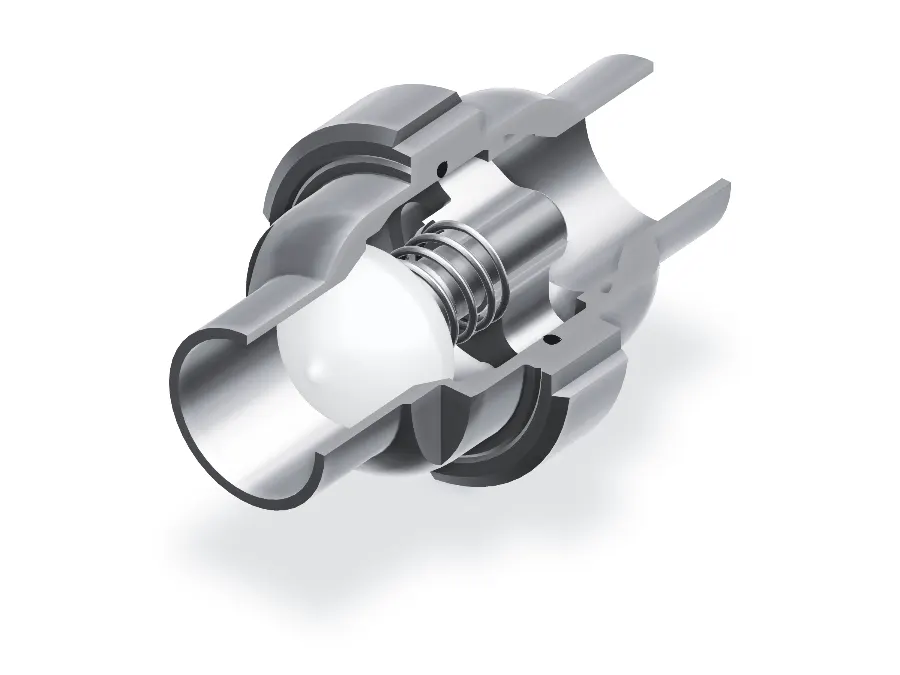

screwed or flangedBall Non-return Valve
Ball non-return valve with weld end acc. DIN11866 or clamp connection acc. DIN32676.
View product

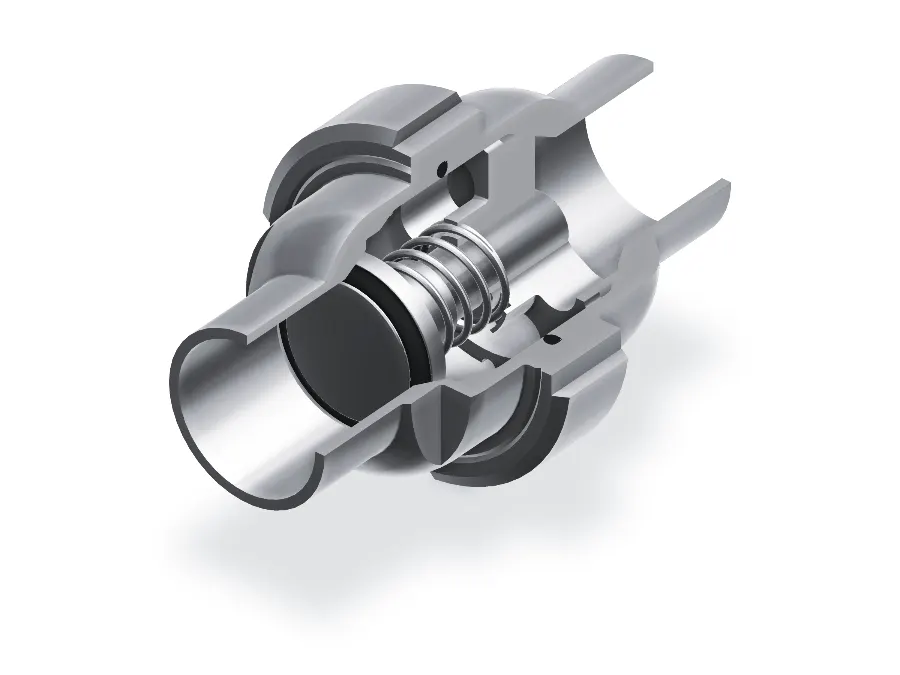

screwed or flangedDisc Non-return Valve
Disc non-return valve in screwed and flanged version, with spare part set.
View product
Disc non-return valveMagnetically Closing
Magnetically closing disc non-return valve, flanged, for defined closing forces.
View product
04
Line sight glasses
See what is happening in the pipe — as a partial view through one glass or as an all-round full view, in the same face-to-face length as the connection.

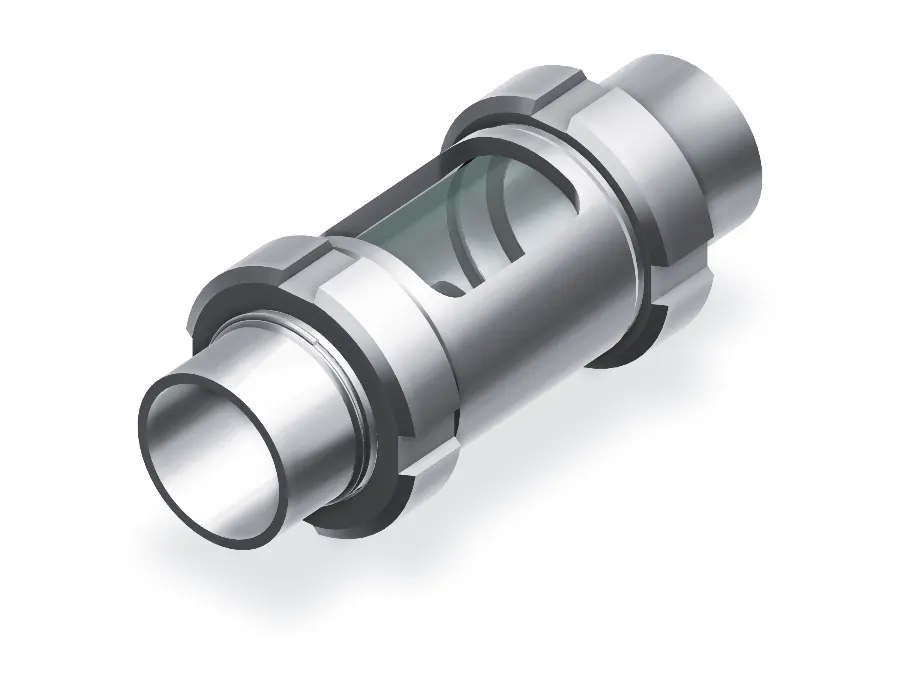

One sight glass in the pipe bodyPartial view
Weld end acc. DIN11866 or clamp end acc. DIN11864 and DIN32676.
View product

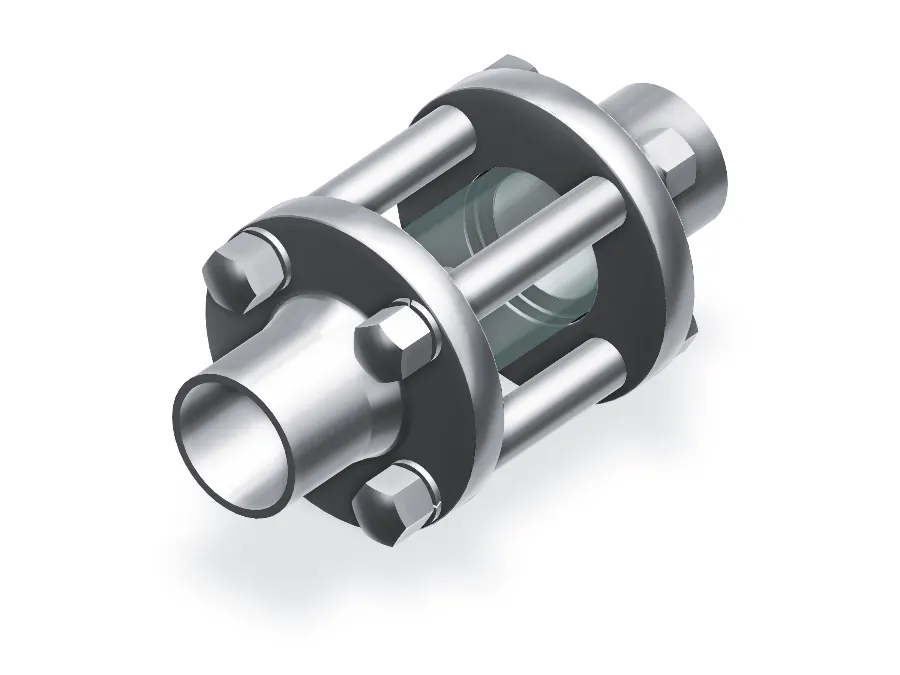

Glass tube visible all roundFull view
Weld end acc. DIN11866, clamp end acc. DIN32676 or flange acc. EN1092.
View product
TECHNICAL
DIN04 to DIN150, ISO06 to ISO150 and OD ¼" to OD 6" · borosilicate glass, wetted parts 1.4435 (316L), electropolished Ra < 0.6 µm · −20 °C to +160 °C.
05

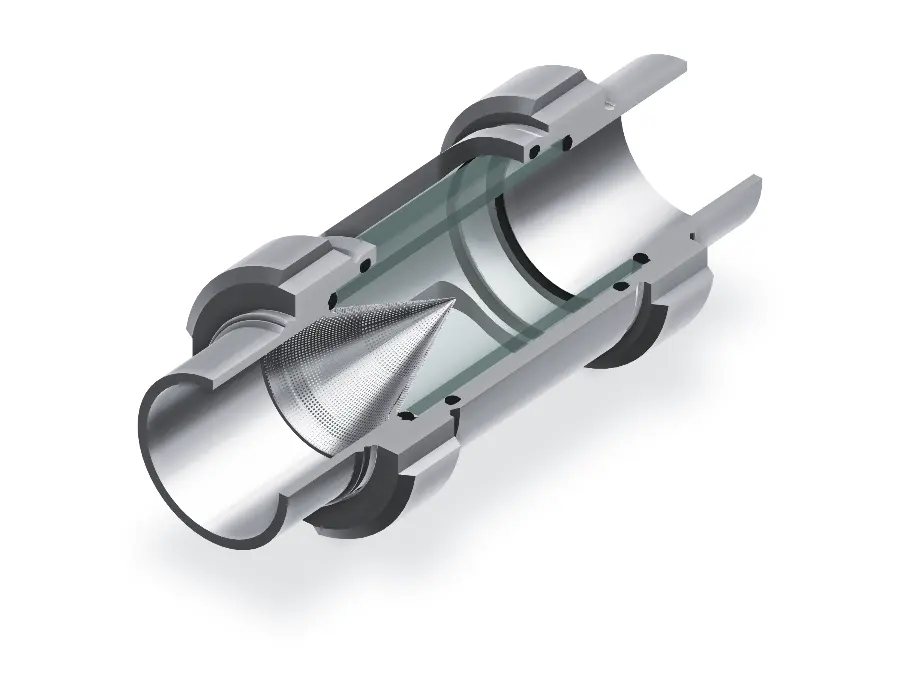

Strainers & Orifices
Conical strainer and orifice sit directly in the sealing seat of the connection — for

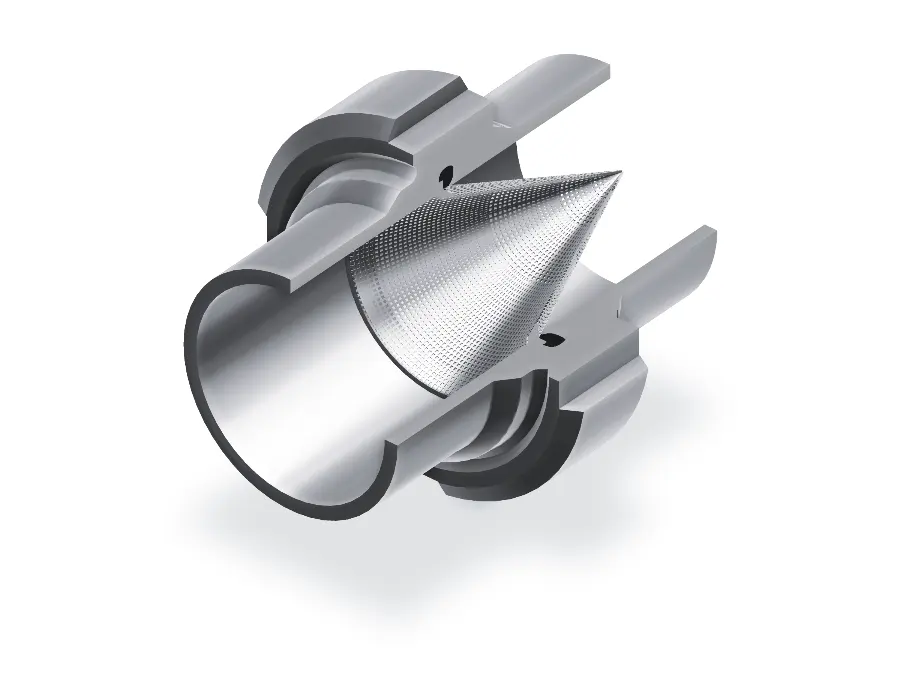

bio-plus® sterile connectionStrainer

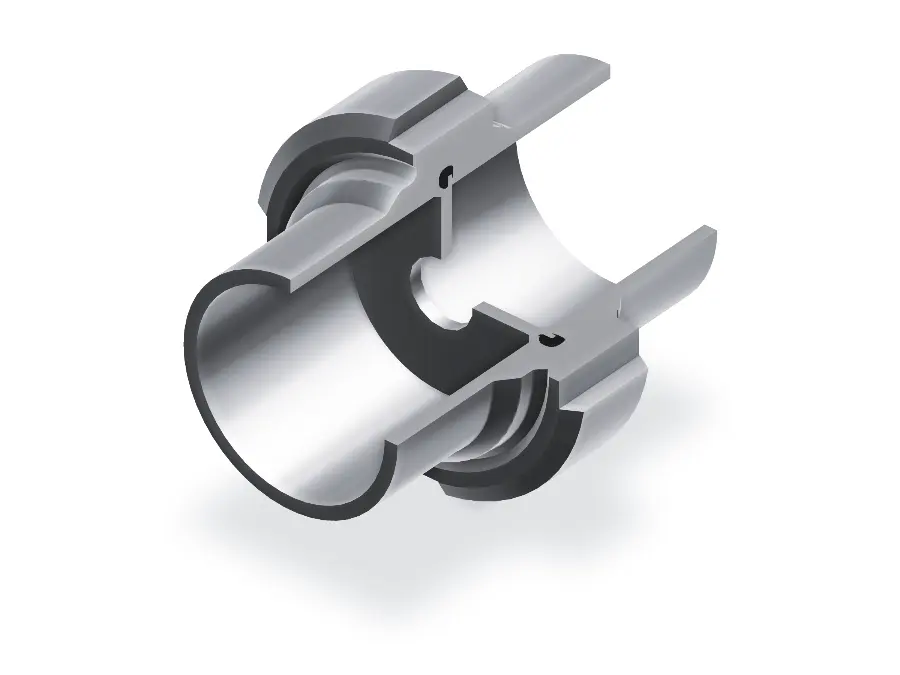

bio-plus® sterile connectionOrifice

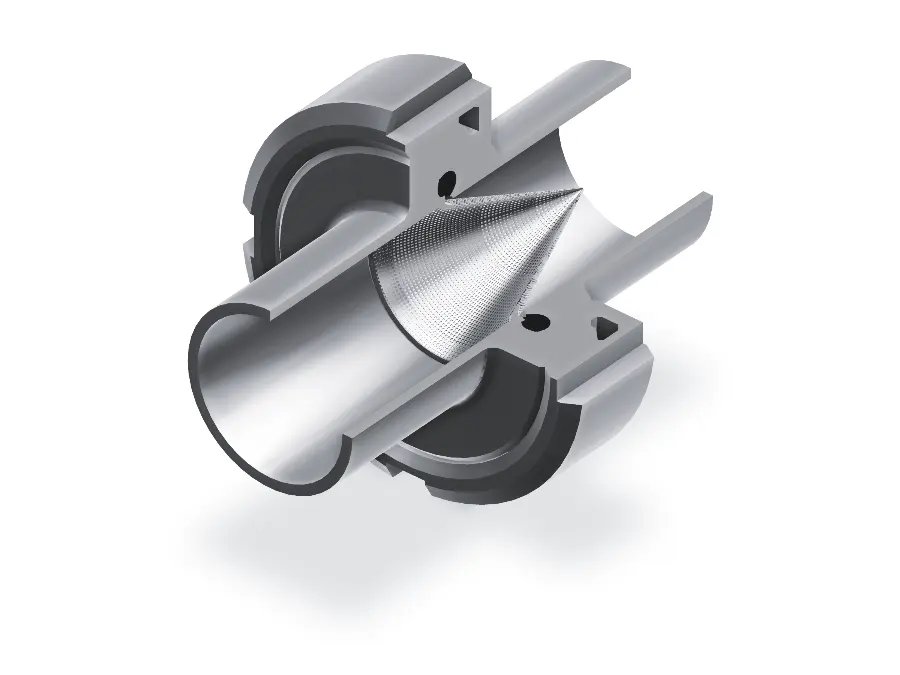

DIN11864 aseptic connectionStrainer

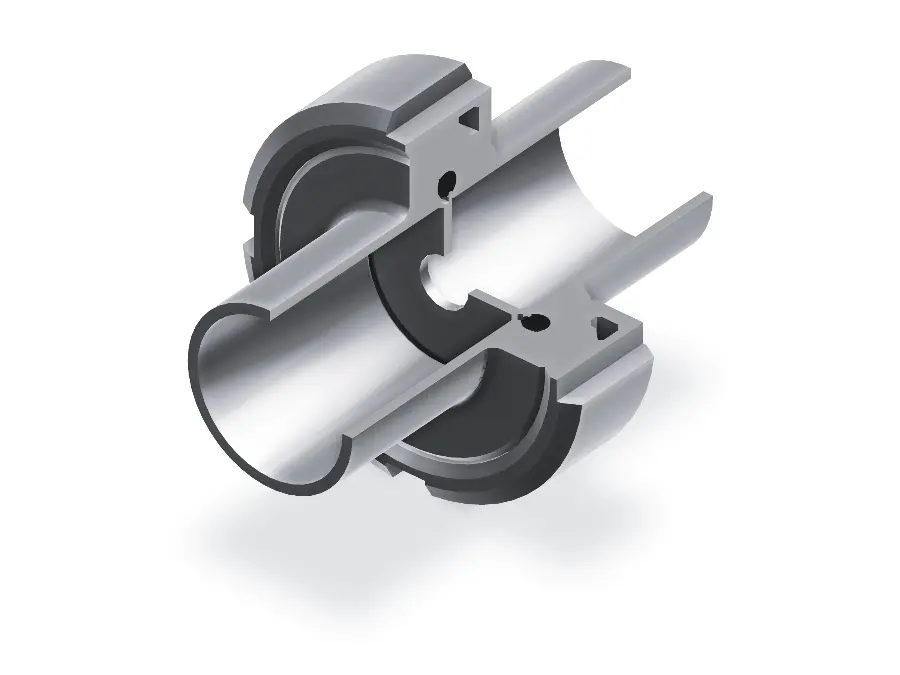

DIN11864 aseptic connectionOrifice
06

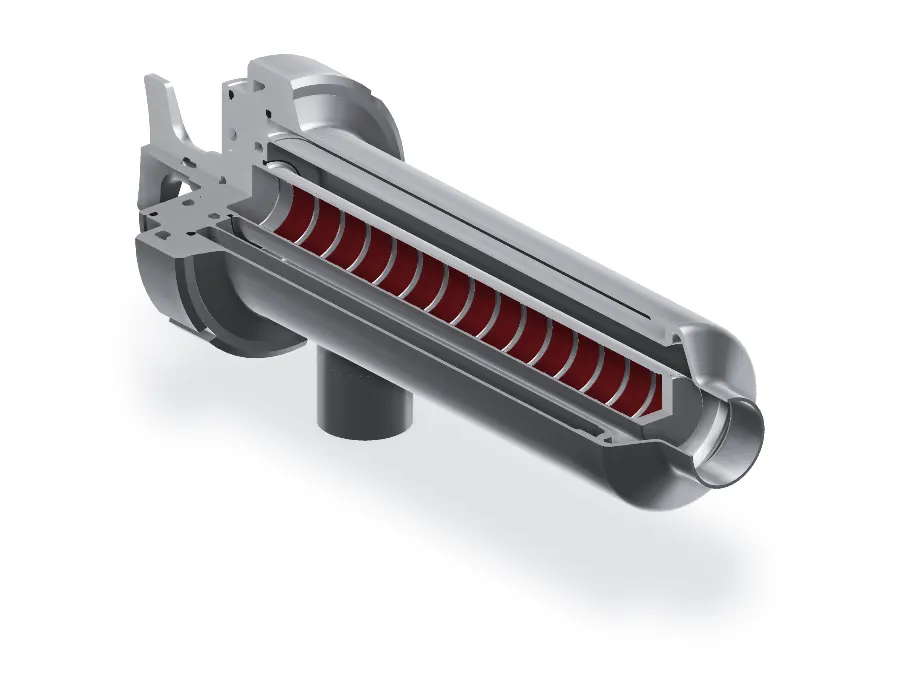

Magnetic Separator ILM
The tubular magnetic separator reliably separates magnetic solids from the liquid — with a high flow rate and a low pressure loss.
the casing stays installedPull only the rod
The casing is cleaned by CIP while installed. Only the magnetic rod comes out.
for manual cleaningThe complete inner part
Where the solids are to be removed by hand, the complete inner part can be taken out and cleaned.
high flow, low lossIn continuous operation
The tubular design allows a high flow rate at a low pressure loss in continuous operation.
07
Inline Filter ILF-V
A tubular filter surface separates the solids from the liquid. On the
safety for people and processNo manual intervention
Flushing, draining, depressurising and securing against restart all fall away. The safest intervention is the one that never happens.
closes with the flowSeat fitted inversely
When the differential pressure rises because the screen is blocking, it pushes the valve shut rather than open.
the basic versionILF without valve
Same filter surface, same connections. The solids are discharged by hand; the filter can be backflushed just the same.
08
Process Hoses
Hoses in PTFE, silicone, EPDM and TPE for gases and liquids, supplied as complete hose assemblies with hygienic fittings. Pressure and temperature depend on the hose type.
ID 6.71–100 mm · −70 to 260 °CPTFE
Chemically resistant. Reinforced with fibre and wire or with stainless steel braid, optionally electrically conductive for ATEX zone 0.
View product

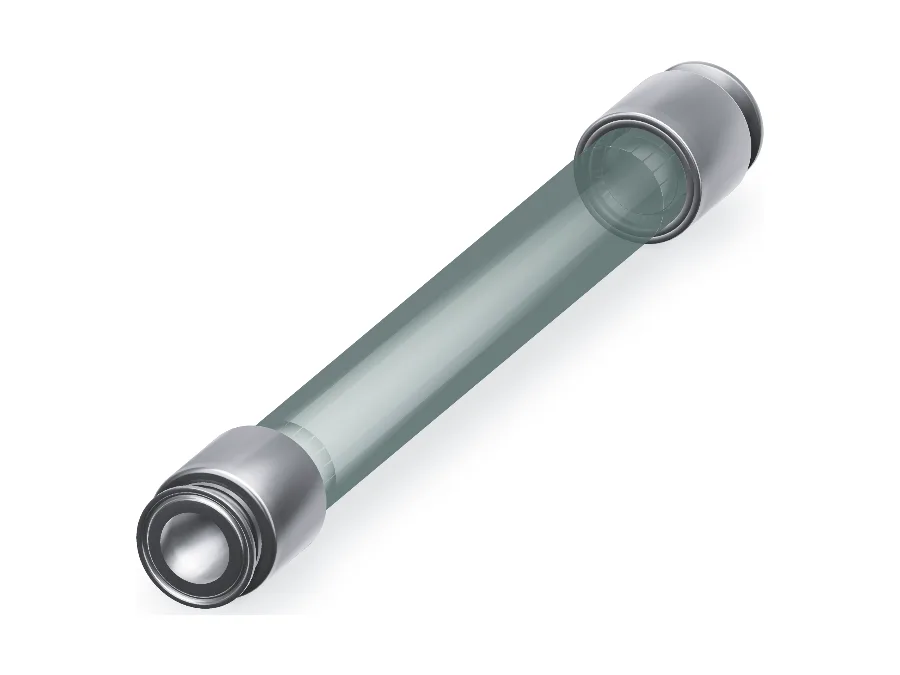

ID 1.6–102 mm · −60 to 200 °CSilicone
Non-reinforced or reinforced with fibre, aramid or wire. Odour and taste neutral, for hygienic transfer lines.
View product

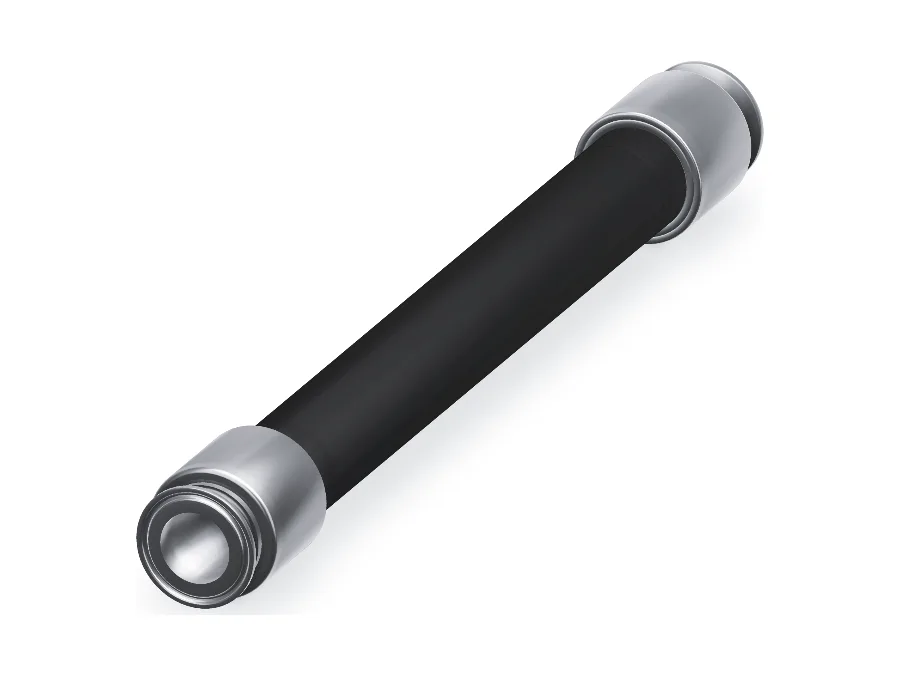

EPDM ID 10–102 mm · up to 164 °CEPDM and TPE
EPDM for cleaning media and steam. TPE is sealable and weldable, for sterilisable assemblies.
View product

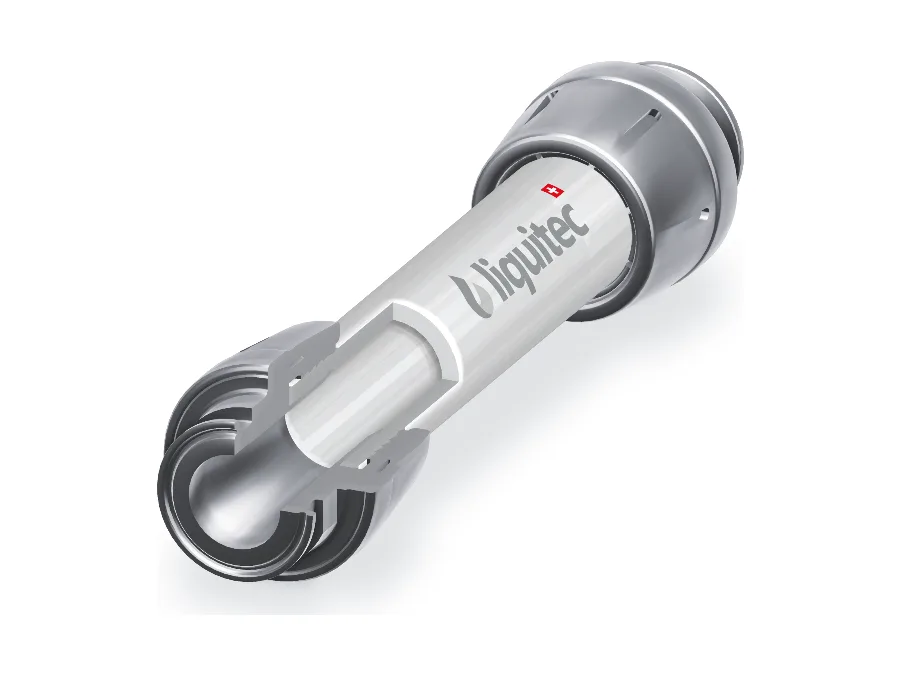

reusable or crimpedFittings and assembly
Screwed or crimped hose fitting, with weld end DIN11866, TC DIN32676, DIN11864 or
View product
09·In detail
Individual products in more depth.
bio-plus® Sterile Connection
Developed for sterile and hygienic pipelines that depend on smooth product-contact surfaces, reliable sealing and complete material traceability. Suitable for gases and liquids, available in several connection types and pressure ratings.
View product
bio-plus® Clamp Connection DIN32676
Standard connection to DIN32676 for hygienic pipelines carrying gases and liquids. Ferrules, gasket and clamp form a joint that can be opened and reassembled for maintenance, inspection and cleaning.
View product
bio-plus® DIN11864 Aseptic Connection
Aseptic pipe connection to DIN11864 for gases and liquids: as screw union (part 1), as flange connection (part 2) and as clamp union (part 3). All three seal with an O-ring and are supplied in DIN, ISO and OD dimensions.
View product
bio-plus® Pipe Fittings and Reducers
Pipe fittings to ASME BPE with clamp connection and reducers to DIN11865 with weld end: for changing direction, branching, reducing and closing off hygienic pipelines.
View product
bio-plus® Non-return Valves
Non-return valves for sterile gas and liquid lines: they let the medium pass in one direction and prevent backflow. Available in several valve designs, connection types, materials, gaskets and opening pressures.
View product
bio-plus® Line Sight Glasses
Line sight glasses for hygienic gas and liquid lines. Flow, clarity, colour and condition of the medium can be checked directly in the line, as a partial view or a full view version.
View product
bio-plus® Strainers and Orifices
Conical strainer and orifice sit directly in the sealing seat of the pipe connection — for the
View product
bio-plus® Magnetic Separators ILM and ILM-F
Magnetic separators for hygienic and sterile process lines: the tubular separator reliably removes magnetic solids from the liquid. The
View product
bio-plus® Inline Filters ILF and ILF-V
Inline filters for hygienic and sterile process lines: a tubular filter surface separates the solids from the liquid. On the ILF they are discharged by hand, on the
View product
bio-plus® Process Hoses and Fittings
Process hoses, hose assemblies and hygienic hose fittings for gases and liquids. For plants where cleanability, flexibility, traceability and material compatibility matter.
View product
